| Код | 54705 |
2.0-3.0L-V-clamp
Flange: Inlet T3,Outlet V-clamp
Actuator: External
Max HP: 540+
Instal billet wheel: +15~25% hp
TURBINE:
Wheel: TE06H
Diameter: 58.8/67.14 mm
A/R: 73
Nozzle area: 10cm²
COMPRESSOR:
Wheel: 25G
Diameter: 60.5/78 mm
CFM: 780
| Код | 45264 |
Application - F38 2 bolt flange wastegate spring.
- This is (1) spring for Tial Flange 38mm / 44mm Wastegates
- NOT FOR TIAL 38MM V-Band wastegate.
Important Notes:
These springs will not fit the MVR or MVS Wastegates.
| Код | 42973 |
| Код | 30862 |
| Код | 56395 |

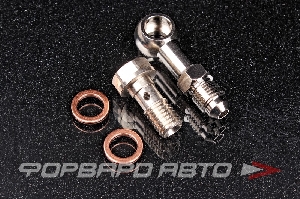

Application
Greddy T517Z T518Z Turbocharger Oil Feed Line for NISSAN 200SX SILVIA S13, S14, S15 / GTIR
Includes
- 2# 30cm teflon hose x 1
- M11XP1.0mm oil banjo bolt kit for turbo side x 1
- M12XP1.25mm water banjo bolt kit for engine side x 1
| Код | 40183 |
- 30 cm braided steel oil hose (4AN) x 3
- M12 x 1.25 mm oil banjo bolt kit to turbo x 1
- M10 x 1.25 mm oil banjo bolt kit to engine x 1
- M14x1.5mm water banjo bolt kit to turbo x 2
- 10mm pipe fitting for genuine silicon hoses x 2
| Код | 40136 |
Application: 49189-06500, 49189-06501. TD04HLA Turbocharger.
Bearing Type: Journal Bearing / Performance Thrust Bearing Kit with larger thrust ring and flinger.
Cooling System: Water cooled (Two coolant hole on same side as picture)
Compressor Wheel: 46 mm / 56 mm (Inducer / Exducer)
Turbine Wheel: 52 mm/ 45.6 mm (Inducer / Exducer)
Turbo Boost Limit: 2.8 Bar (Based on Performance bearing kit with larger thrust bearing )
Condition: Brand New / 150,000 RPM Balanced on Schenck 110 MBRS
| Код | 42962 |
| Код | 142458 |
Application - F38 2 bolt flange wastegate spring.
- This is (1) spring for Tial Flange 38mm / 44mm Wastegates
- NOT FOR TIAL 38MM V-Band wastegate.
Important Notes:
These springs will not fit the MVR or MVS Wastegates.
| Код | 42976 |
| Код | 56392 |
| Код | 153082 |
| Код | 79363 |
| Код | 231609 |
| Код | 56341 |
a/r Value: 0,85ar
Turbine Wheel: 63/63,5mm
Flange type: V-Band
Product Type: Turbine housing (internal WG)
Turbocharger: EFR 7163
| Код | 150682 |
| Код | 93810 |
| Код | 47375 |

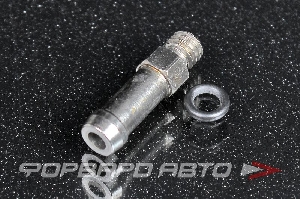

ITEM NAME
- M12x1.5 mm Banjo Pipe with 3/8" (9.5mm) Barb
APPLICATION
- Universal
KIT INCLUDES
- 1 x 12mm banjo pipe with 3/8" barb
- 1 x M12x1.5mm Banjo bolt
- 2 x 12mm washer
| Код | 170484 |
