PTE's PT6266 Turbocharger features the following:
• Exclusive CEA® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging
• Higher efficiency and faster transient response for maximum power and performance
• 62mm inducer compressor wheel
Compressor cover options:
- "E" compressor cover 3.0" inlet/2.0" outlet
- "Ported S" compressor cover 4.0" inlet/2.5" outlet
• Exclusive CEA® (Competition Engineered Aerodynamics) 66mm, 76 trim turbine wheel
Turbine housing options:
- T3 .63 or .82 A/R with 4 bolt (2.5") discharge
- T3 .63 A/R with 5 bolt discharge (with or without wastegate hole)
- T3 .63 or .82 A/R with 3" V-Band discharge
- V-Band inlet .82 A/R with V-Band discharge
- T4 Tangential .58, .68, .81, or .96 A/R with 3 5/8" V-Band discharge
- T4 Divided .84, 1.0, 1.15, or 1.32 A/R with 3 5/8" V-Band discharge
- Buick .63 or .85 A/R
- GMC Syclone/Typhoon .85 A/R
- K26 .82 A/R
• Available with either a Hydrodynamic 360° thrust bearing system, or an Air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)
| Код | 61831 |
1.5-2.0L
Flange: T25/T28
Actuator: 0.5 BAR
Replacement for: OIL + WATER COOLED
Max HP: 230+
TURBINE:
Turbine Wheel: TD04H
Diemeter: 44/52 mm
A/R: 41
Nozzle area: 6cm²
COMPRESSOR:
Compressor Wheel: 19T
Diemeter: 46/58 mm
CFM: 450
| Код | 45303 |
| Код | 35697 |
| Код | 170368 |
| Код | 167806 |
| Код | 32712 |
EFR 8374 is engineered to support big power levels yet spool fast enough for professional time attack teams. The 74mm Gamma-Ti turbine wheel is the optimal match for the 62.6mm inducer / 83mm exducer FMW compressor wheel and is capable of 79lb/min airflow. This is one of the most exciting turbos in the EFR lineup for the high-power addicts. This turbo has the largest EFR compressor housing and is ideal for use in single turbo applications for the 500-800hp range, or as twin turbo applications up to 1300hp. Ceramic Ball Bearing only, watercooling optional (recommended)
Compressor Specifications
- Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
- Compressor Wheel OD (exducer): 83mm
- Compressor Wheel Inducer: 62.6mm
- Max Flow Rate: 79 lb/min
- Built-in BOV: All EFR compressor housings incorporate an integrated BOV.
- Compressor Housing Connections:
- Inlet: 4" Ported Shroud Hose Coupler
- Outlet: 2.5" Hose Coupler w/ integrated Vband option
Turbine Specifications
- Turbine Type: Low Inertia Gamma-Ti Turbine Wheel
- Turbine Wheel OD: 74mm
- Stainless Steel Turbine Housing - The EFR 8374 is available in (3) different turbine housing configurations, all use 3" vband (92mm OD): [list]
- 0.83 A/R T3 Undivided (Internal WG) - Part # 179258
- 0.92 A/R T4 Twin Scroll (Internal WG)- Part # 179357
- 1.05 A/R T4 Twin Scroll (external WG)- Part # 179393
Features
- Dual Row Ceramic Ball Bearings - lowest friction and fastest spool/response, most extreme durability, built-in oil control orifice - (aka oil restrictor) **no restrictor can be used with EFR turbos
- Watercooled Center Section - watercooling is recommended, 14mm banjo bolts
- Double seals on both turbine and compressor end for extreme durability and resistance to any oil seepage
- Boost Control Solenoid Valve Integrated to Compressor Housing
- Integrated Speed Sensor mounting provisions
| Код | 49319 |
| Код | 190047 |

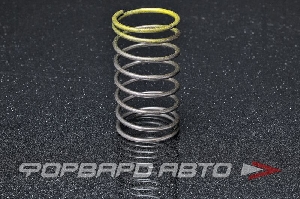

- 6 х Пружин
- 4 х тяги (130мм, 150мм, 165мм, 180мм)
- 1 х концевой фитинг
- 2 гайки для подключения кронштейна
- 1 х гайка для стержня
| Код | 170376 |
| Характеристики | Без пружин |
- Без пружин
- -
| Код | 68148 |
| Код | 47768 |
| Код | 33866 |
ITEM NAME

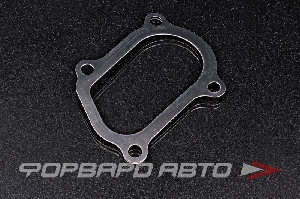

- Kinugawa Turbo Turbine Inlet Gasket For Mitsubishi EVOLUTION EVO 4G63T 4~9 / 4B11T EVO 10 Turbo
APPLICATION
- Turbo to Exhaust manifold
MATERIAL
- Multi-layer stainless steel
KIT INCLUDES
- 1 x turbine inlet gasket
| Код | 170458 |
ITEM NAME
- Kinugawa Turbo Actuator Wastegate Bracket Fits
Garrett Turbo.
APPLICATION
- Garrett GT25R, GT28R, GT30R, GT35R, GT40R,
GTX28R, GTX30R, GTX35R, GTX40R turbochargers
which has bolt type compressor housing.
- For journal bearing type and ball bearing type turbo.
- Garrett P/N : 773151-2
| Код | 170397 |
| Код | 36066 |
| Код | 167805 |
ITEM NAME
- TOYOTA MR2 Celica 3SGTE / 3S-GTE CT20B CT26
Turbo Gasket Set
APPLICATION
- TOYOTA 3S-GTE / 3SGTE CT26 Turbocharger ST185 (6 Bolt Dump Pipe)
- TOYOTA 3S-GTE / 3SGTE CT20 Turbocharger SW20 (7 Bolt Dump Pipe)
KIT INCLUDES
- 1 x Turbine inlet twin entry gasket
- 1 x Turbine outlet gasket
- 1 x Oil feed and oil return
- 2 x Water gasket
| Код | 170477 |
Бренд SIRUDA основан в 2010 году, и на сегодняшний день является немало известным производителем автомобильных прокладок как для бензиновых, так и для дизельных двигателей. Имея богатый профессиональный опыта производства, SIRUDA не уступает конкурентам по качеству своей продукции. Высокая точность изготовления прокладок с максимальным допуском +/- 0,001 достигается самыми современными технологиями и оборудованием.
Целью компании SIRUDA является обеспечение высокого качества продукции для удовлетворения потребности покупателя. Особое внимание уделяется двигателям с турбонаддувом, работающим в экстремальных условиях.
| Код | 38301 |
