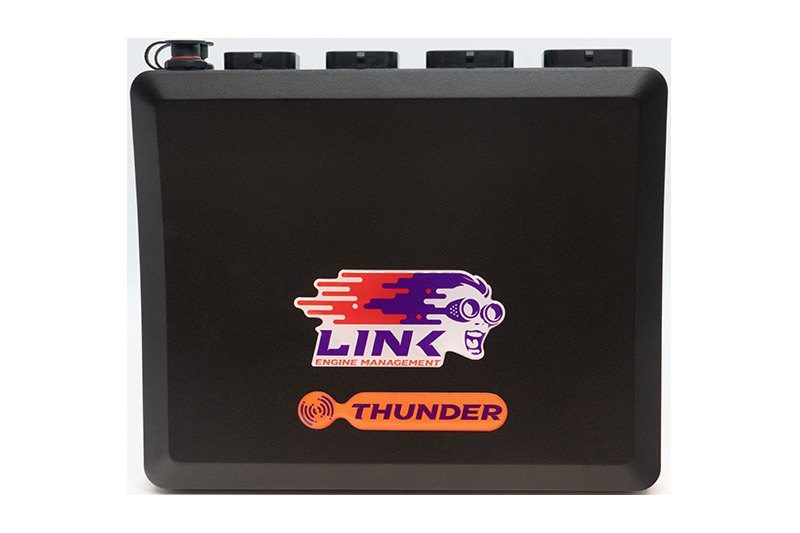

G4+ THUNDER ECUThe Thunder is our biggest, most advanced ECU yet.
The Thunder is designed for high end applications requiring maximum performance, flexibility and tuning control. The Thunder has more inputs, more outputs and more features than any other Link ECU.
The Thunder has all the features found on other LinkECU's plus onboard 3 axis accelerometer, two EGT thermocouple inputs, two Onboard Lambda Controllers and 2 x E-throttle Controllers.
If it is Direct Injection you are after, consider the Force GDI.
Specifications:
Advanced fully configurable WireIn Engine Control Unit (ECU)
Most suitable for high end applications where multi electronic throttle bodies are used or where a large amount of IO is required.
Body
Dimensions: 170 x 212 x 44 mm (6.7 x 8.3 x 1.7 in)
Weight: 1.04 kg (2.29 lb)
Material: Aluminium Die Cast, Black Powder Coated
Mounting: Flush mount extruded mounting bracket
Connectors:
2 x 34 pin AMP Super Seal
2 x 26 pin AMP Super Seal
2 x Link 6 pin
Indicators: Power / Fault code indicator LED
IP Rating: 54
Platform
Electronics: Link G4+ Engine Control Platform
Processor:
40 MHz dual processor
