Артикул:

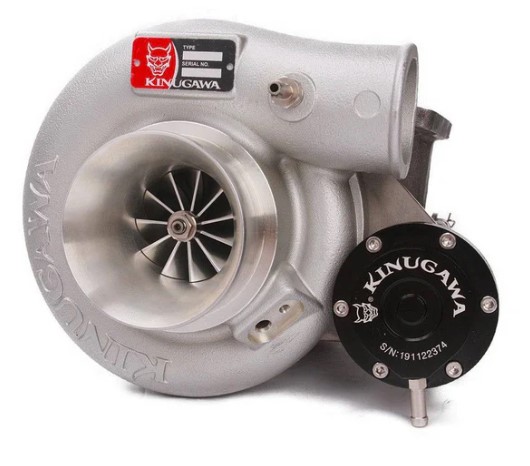

Billet 6+6 Non Anti-Surge
Код
—
214330
Каталожный номер
—
351-02035-503
Информация на сайте считается ознакомительной и не является исчерпывающим руководством к использованию товара или услуги.
Application- For Nissan CA18DET Silvia S13 180SX/ 200SX (Europe)/ 240SX (North America)
- For Nissan SR20DET Silvia S13 S14 S15/ 200SX (AUS/NZ)/ 240SX (North America)
- Replace and refresh the stock for the Garrett T28 TURBO directly.
- Horsepower Range: 380~420whp
CHRA Size
TD06SL2-18G
Wheels Spec
- Compressor wheels: 50.3/68 mm
(The 6+6 blades are better for low-end torque)
- Turbine wheel: 54.1 / 61 mm 9 Blades STS
Kinugawa Turbo Systems STS (Superior Turbine Strike) advanced cartridges come with dual ceramic ball bearing cages and 9 blades high flow turbine wheels improve the response speed (time needed to build boost) 10-15% as well as being more durable due to the improved shaft dynamics control. The increased power comes from the enhanced design. It utilizes an inner and outer race with rollers or balls between the two races. The inner race is pressed onto the turbo shaft, and the outer race is pressed into the CHRA. The rollers or balls replace the oil’s “job” of controlling the turbo shaft’s orientation but do still need to be lubricated but the oil restrictor had been defaulting embedded in the bearing housing to reduce oil supply more.
Turbines Housing
- A/R 8cm^2 /.57
Compressor Housing
- A/R .60
- 3" inlet
- 2" outlet
Bearing Type
- Dual Ceramic Ball Bearing
Cooling Type
- oil and water cooling
Actuator Pressure
-1.0 bar / 14.7 psi-drive will go with Turbo.
The set includes
- 1 x turbine inlet/outlet gasket
- 1 x compressor input / Output gasket
- 1 x Return gasket
- 1 x Oil supply set
- 1 x Return Oil Pipeline
- 1 x water supply kit for water (6AN hose)
- 8 x cloves and nut set
- 1 x Balance Report with anti-counterfeit tag
Situation
Brand New
Provider
Kinugawa Turbo Systems
