Артикул:

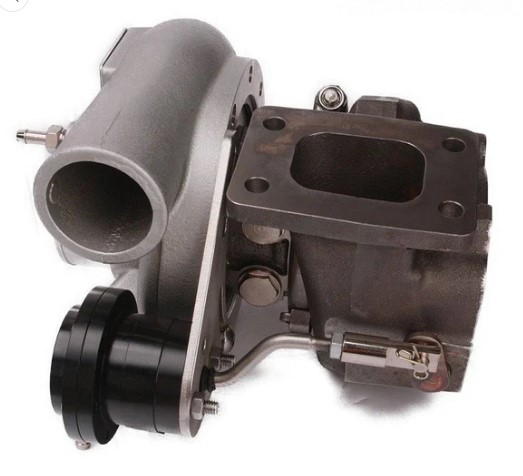

Billet 6+6 Non Anti-Surge
Код
—
214328
Каталожный номер
—
351-02035-502
Информация на сайте считается ознакомительной и не является исчерпывающим руководством к использованию товара или услуги.
Application- For Nissan CA18DET Silvia S13 180SX/ 200SX (Europe)/ 240SX (North America)
- For Nissan SR20DET Silvia S13 S14 S15/ 200SX (AUS/NZ)/ 240SX (North America)
- Replace and refresh the stock for the Garrett T28 TURBO directly.
CHRA Size
TD05H-16KX
Wheels Spec
- Compressor wheel: 49.96 / 68.0 mm (7+7 Point-Milled)
This high-performance 68mm compressor blends quick response and top-end power with OE reliability. The billet 16KX billet compressor wheel utilizes their latest generation blade aero with 7 primary blades and 7 splitter blades.
Turbines Housing A/R
8cm ^ 2 / .57
Compressor Housing
- A/R .60
- 3" inlet
- 2" outlet
Bearing Type
- Dual Ceramic Ball Bearing
Cooling Type
- oil and water cooling
Actuator Pressure
-1.0 bar / 14.7 psi-drive will go with Turbo.
Max hp
300~450HP
The set includes
- 1 x turbine inlet/outlet gasket
- 1 x compressor input / Output gasket
- 1 x Return gasket
- 1 x Oil supply set
- 1 x Return Oil Pipeline
- 1 x water supply kit for water (6AN hose)
- 8 x cloves and nut set
- 1 x Balance Report with anti-counterfeit tag
Situation
Brand New
Provider
Kinugawa Turbo Systems
