Код
—
231071
Каталожный номер
—
TOOL-CF7
Информация на сайте считается ознакомительной и не является исчерпывающим руководством к использованию товара или услуги.

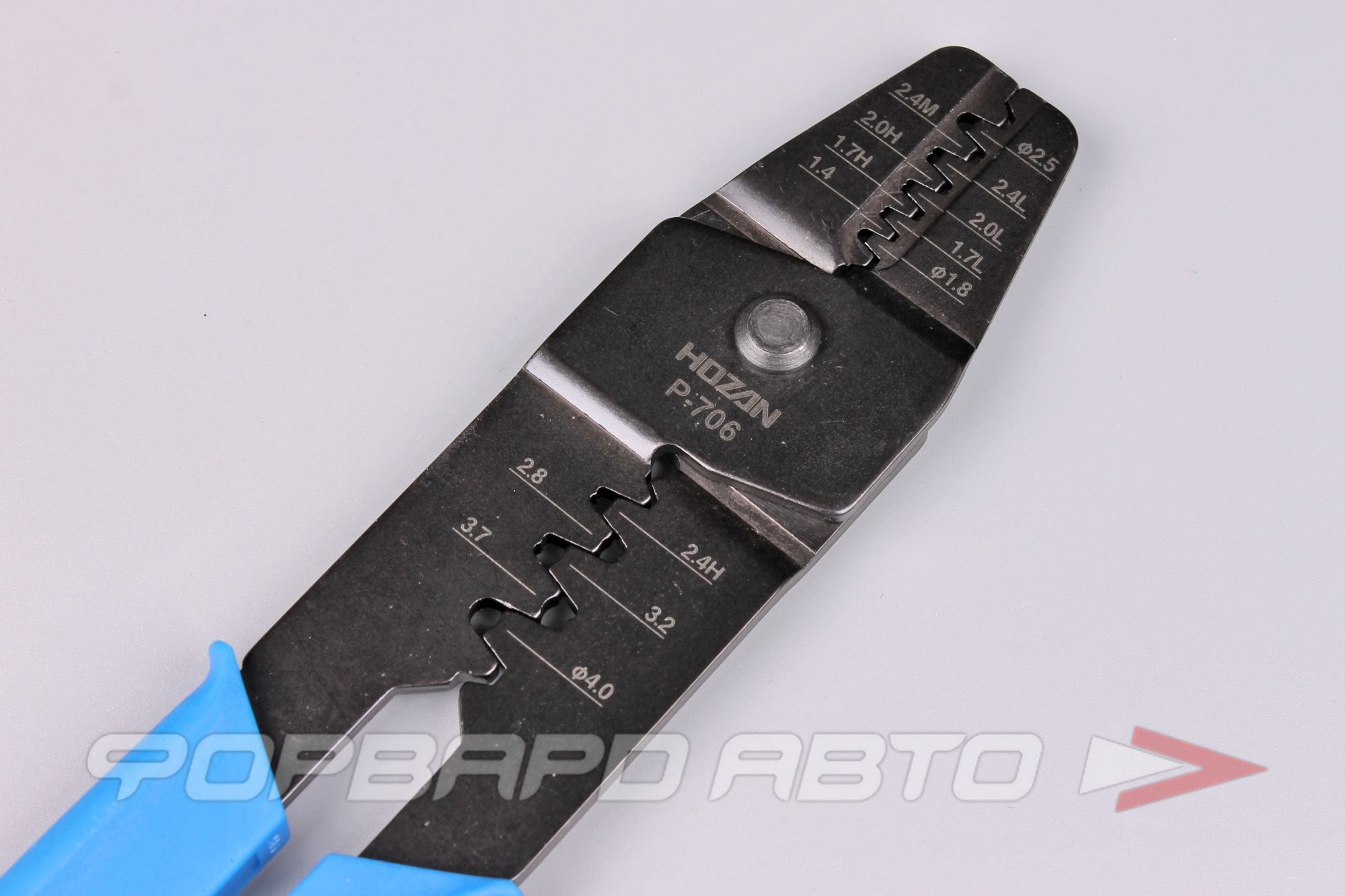

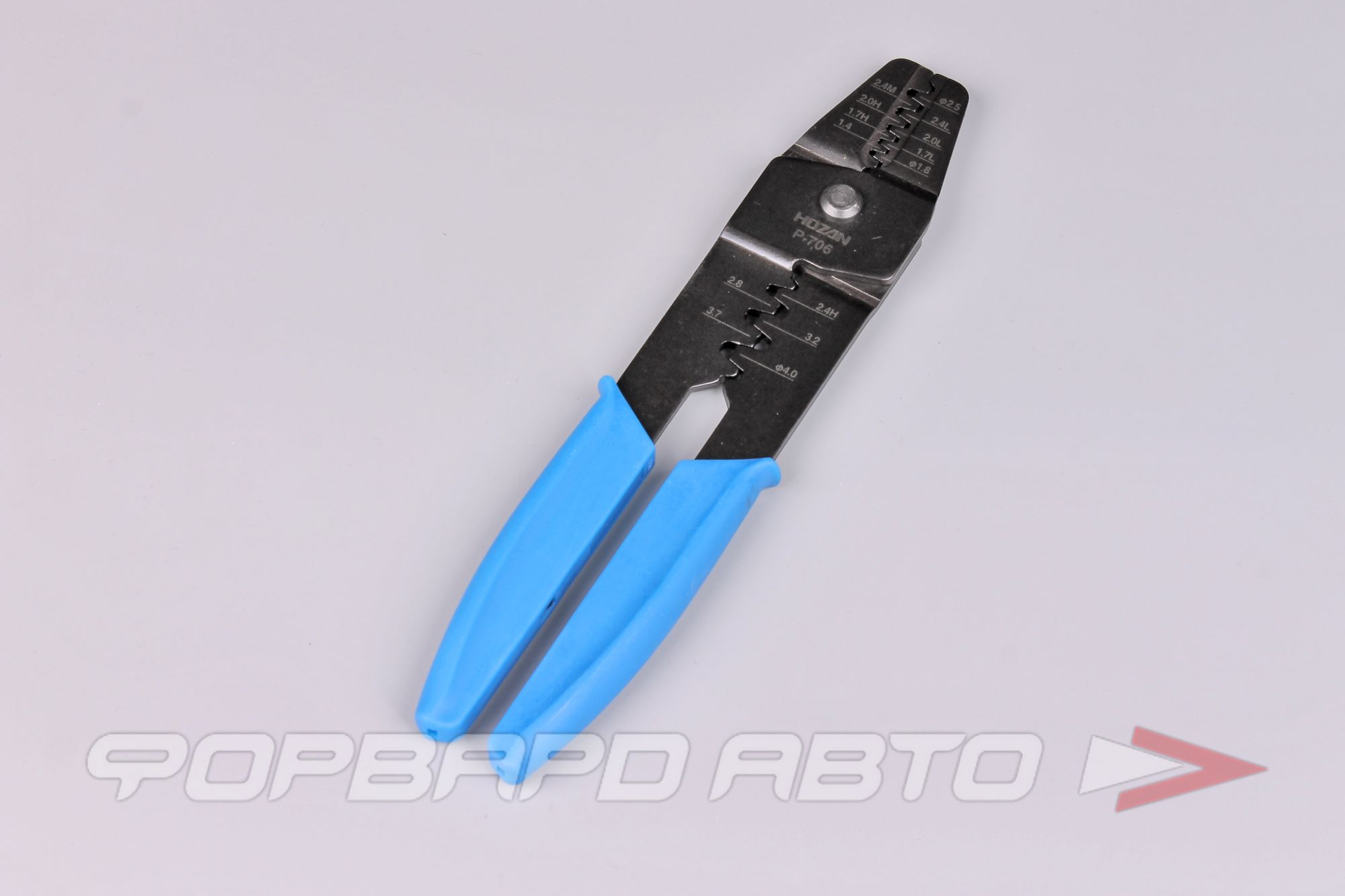

Ideal for crimping small terminals, the Hozan P-706 is machined and built to high standards that result in a high quality crimp.Features 11 "F" crimp cavities from 1.4-3.7mm (1.4, 1.7L, 1.7H, 2.0L, 2.0H, 2.4L, 2.4M, 2.4H, 2.8, 3.2, 3.7mm)
L=Narrow crimp width, M=Mid size crimp width, H=Wide crimp width (Widest, of the particular size available)
3 round insulation crimps: 1.8, 2.5, and 4.0mm diameter
Made in Japan
NOT compatible with:
- YESC.15, 1.5mm System Sealed, Yazaki
- GT150.35, GT-150 Sealed, Delphi
- DS, HD, HM, MT 090 Unsealed, Sumitomo
- MP150-series, Metri-Pack 150 Rear Insert type, Delphi
- MP150.2-series, Metri-Pack 150.2 Pull to seat, Delphi
- MP150P-series, Metri-Pack 150 Pull to seat, Delphi
- MP150U-series, Metri-Pack 150 Unsealed, Delphi
- MX23A-series, JAE
- MX34-series, JAE
- MX47-series, JAE
- SSC-series, Tyco/AMP Sealed Sensor Connector
- TS025-series, Sumitomo
- W025-series, Sumitomo
