Control up to 12 cylinders sequentiallyAccess up to 30 auxiliary pins
14 analogue / 10 digital inputs
DI Features, including DI Pump Control
2 on-board wideband controllers
Dual Knock Control
Wi-Fi Connectivity
GPS Logging

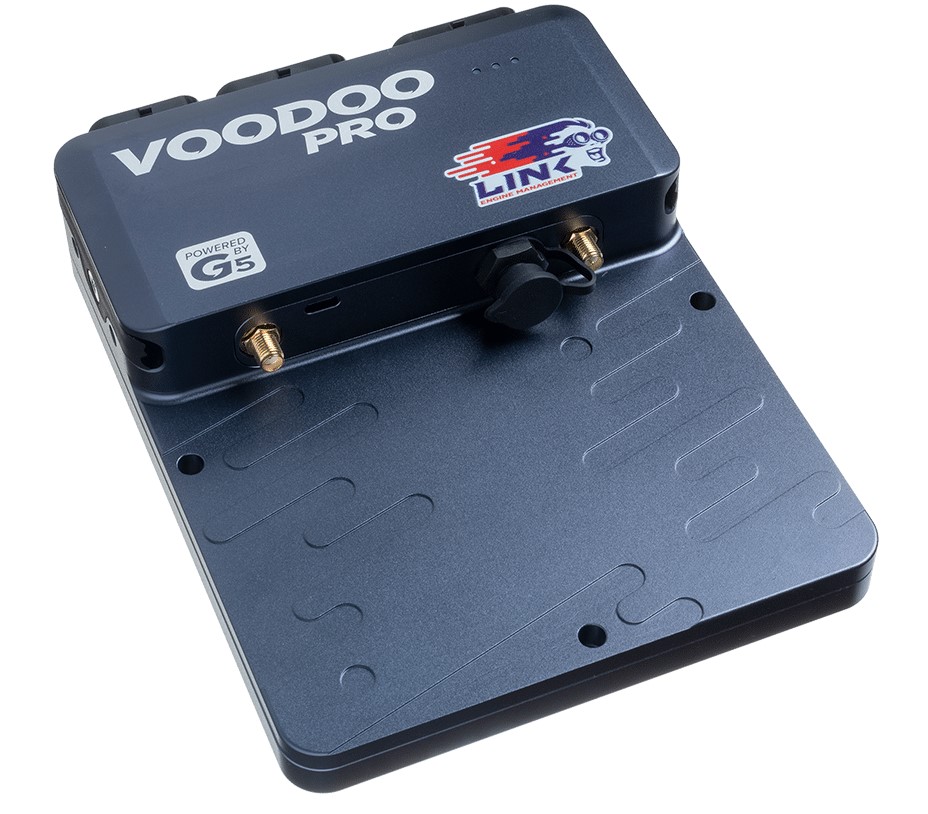

New G5 Voodoo Pro
G5 Voodoo Pro puts real magic in your hands and opens a new world of possibilities with the ability to control port plus direct injection, more injector and ignition drives, advanced communications and many more features.
With 12 Injection, 8 Ignition and 4 multi-purpose (inj, ign, aux) drives (24 total) the G5 Voodoo Pro can run up to:
twelve cylinders or six rotors with sequential injection and direct spark, or
eight cylinders with staged injection and direct spark.
The G5 Voodoo Pro is the perfect choice for professional level motorsport.
Technical Specs
Inputs/Outputs
Control any engine with 2 cylinders, all the way up to 12 cylinders, thanks to:
12 injector pins
8 ignition pins
4 injector/ignition dual role pins
Access up to 30 auxilary pins (when setup for a 4-cylinder sequential engine):
8 dedicated auxiliary pins
4 shared e-throttle/H-Bridge pins
2 shared wideband heater pins
Up to 16 from spare injector and ignition drives
Any unused injector/ignition pins can be used as an auxiliary pin
All ignition and auxiliary pins are back feed protected.
14 analog inputs
10 digital inputs
4 temperature inputs
Dual knock inputs
2 trigger inputs
Dedicated ignition switch pin
2 x internal wideband lambda controllers
Dual e-throttle, with internal solid state throttle disconnect relays
5v sensor supply
CAN 1 input now supported via CAN connector
Communications
USB-C (cable included)
Connect directly to the ECU via built-in Wifi Access Point, or add it to an existing network (Antenna Included)
Dual CAN (CAN 1 on CAN connector, CAN 2 on header E)
GPS (antenna included)
Logging
512MB logging capacity
Ultra High Speed (250 Channels of Logging, up to 1kHz per channel, up to 100kSamples/s in total)
GPS Logging - up to 50Hz
Size & Weight
Length:177.1 mm
(6.97 inches)795 g (28 ounces)Width:Min Side Height:Max Side Height15.5 mm
(0.61 inches)137.3 mm
(5.40 inches)40.2 mm
